Caller.h File Reference

This header defines the Caller class and Wisp communication protocol support classes. More...

#include <ssrc/spread.h>
#include <ssrc/wisp/protocol/ServiceProtocol.h>
#include <queue>
#include <sstream>
#include <stdexcept>
#include <boost/shared_ptr.hpp>
#include <boost/multi_index_container.hpp>
#include <boost/multi_index/mem_fun.hpp>
#include <boost/multi_index/hashed_index.hpp>
#include <boost/multi_index/composite_key.hpp>

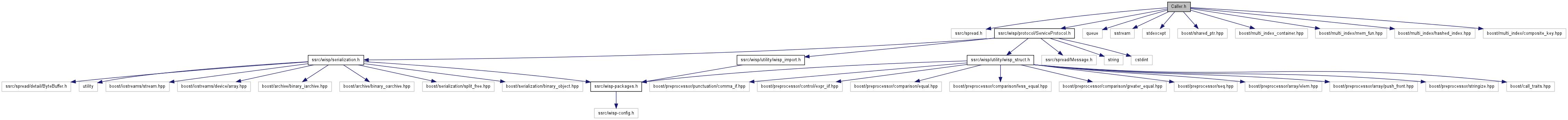

Include dependency graph for Caller.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	protocol::detail::VoidReturnType
	An empty structure used to represent a void return type for Wisp calls. More...
struct	protocol::CallTraits< CallerType, ParameterType, ReturnType >
	The three-parameter CallTraits template defines all the type information characterizing a TwoWay call. More...
struct	protocol::CallTraits< CallerType, ParameterType, detail::VoidReturnType >
	The two-parameter CallTraits template defines all the type information characterizing a OneWay call. More...
class	protocol::CallException
	A CallException is thrown when a call cannot complete because of an unexpected condition. More...
struct	protocol::CallHeader
	Every call is described by a CallHeader followed by a message. More...
struct	protocol::MessageInfo
	Stores all information associated with a received call, including the raw message data. More...
class	protocol::Caller< PT >
class	protocol::Caller< PT >::Future< ReturnType >
struct	protocol::Caller< PT >::CallTag< call_type >
Namespaces
namespace	protocol
	The protocol namespace contains classes that define the framework for implementing and accessing Wisp service protocols.
namespace	protocol::detail
	The protocol::detail namespace defines implementation-specific structures that are not intended for use by library client code.
Defines
#define	WISP_ONE_WAY_CALL(caller, method)
	Defines the CallTraits for a one-way call.
#define	WISP_TWO_WAY_CALL(caller, method, result)
	Defines the CallTraits for a two-way call.
#define	__WISP_CALLER_MAX_UNFRAGMENTED_MESSAGE_SIZE   131072U
Typedefs
typedef std::uint32_t	protocol::wisp_call_token
	The type of a call token.
typedef std::uint8_t	protocol::wisp_call_role
	The type used by the CallHeader to store the CallRole of the call being made.
typedef boost::shared_ptr < MessageInfo >	protocol::message_info_ptr
Enumerations
enum	protocol::CallType { protocol::OneWay, protocol::TwoWay }
	CallType defines allowable messaging call types. More...
enum	protocol::CallRole { protocol::OneWayRequest, protocol::TwoWayRequest, protocol::TwoWayResponse }
	The role of a call being made. More...
Variables
const Message::Service	protocol::DefaultMessageServiceType = Message::SafeSelfDiscard
	Wisp calls can request a Spread message service type if desired.
const bool	protocol::GroupMembershipEnable = true
const bool	protocol::GroupMembershipDisable = false

---

Detailed Description

This header defines the Caller class and Wisp communication protocol support classes.

Definition in file Caller.h.

---

Define Documentation

#define __WISP_CALLER_MAX_UNFRAGMENTED_MESSAGE_SIZE   131072U

Definition at line 327 of file Caller.h.

#define WISP_ONE_WAY_CALL	(		caller,
			method
	)

Value:

typedef NS_SSRC_WISP_PROTOCOL::CallTraits<caller, Message ## method> \
  Call ## method

Defines the CallTraits for a one-way call.

Parameters:

caller	The type of Caller through which the call must be made.
method	The name of the call.

Definition at line 137 of file Caller.h.

#define WISP_TWO_WAY_CALL	(		caller,
			method,
			result
	)

Value:

typedef NS_SSRC_WISP_PROTOCOL::CallTraits<caller, Message ## method, Message ## result> \
  Call ## method

Defines the CallTraits for a two-way call.

Parameters:

caller	The type of Caller through which the call must be made.
method	The name of the call.
result	The type returned by the call.

Definition at line 148 of file Caller.h.
